Compressor

Beskrivning

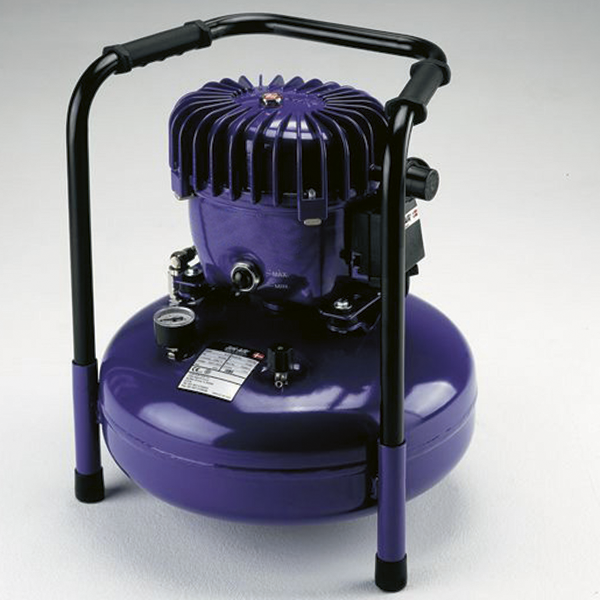

Suitable compressor for Mecha-Kit. This is a piston type oil-lubricated compressor driven by a single phase electric motor and of fully automatic design. The compressor works silently and without vibrations.

The compressor is equipped with:

  • Overload protection
  • Pressure switch with unloader
  • Safety valve
  • Manometer
  • Drain cock
  • Filter regulator with 5?m filter

General Data:

Power supply:

220-240V, 50-60Hz 1-ph

Power consumption:

250W

Capacitiy:

26 l/min at 8 bar

Max. working pressure:

8 bar

Tank size:

15 l

Dimension:

380 x 380 x height 470 mm

Weight:

22 kg
