Control Module

Artikelnr: AUT302011 Kategori: Taggar: ,

Beskrivning

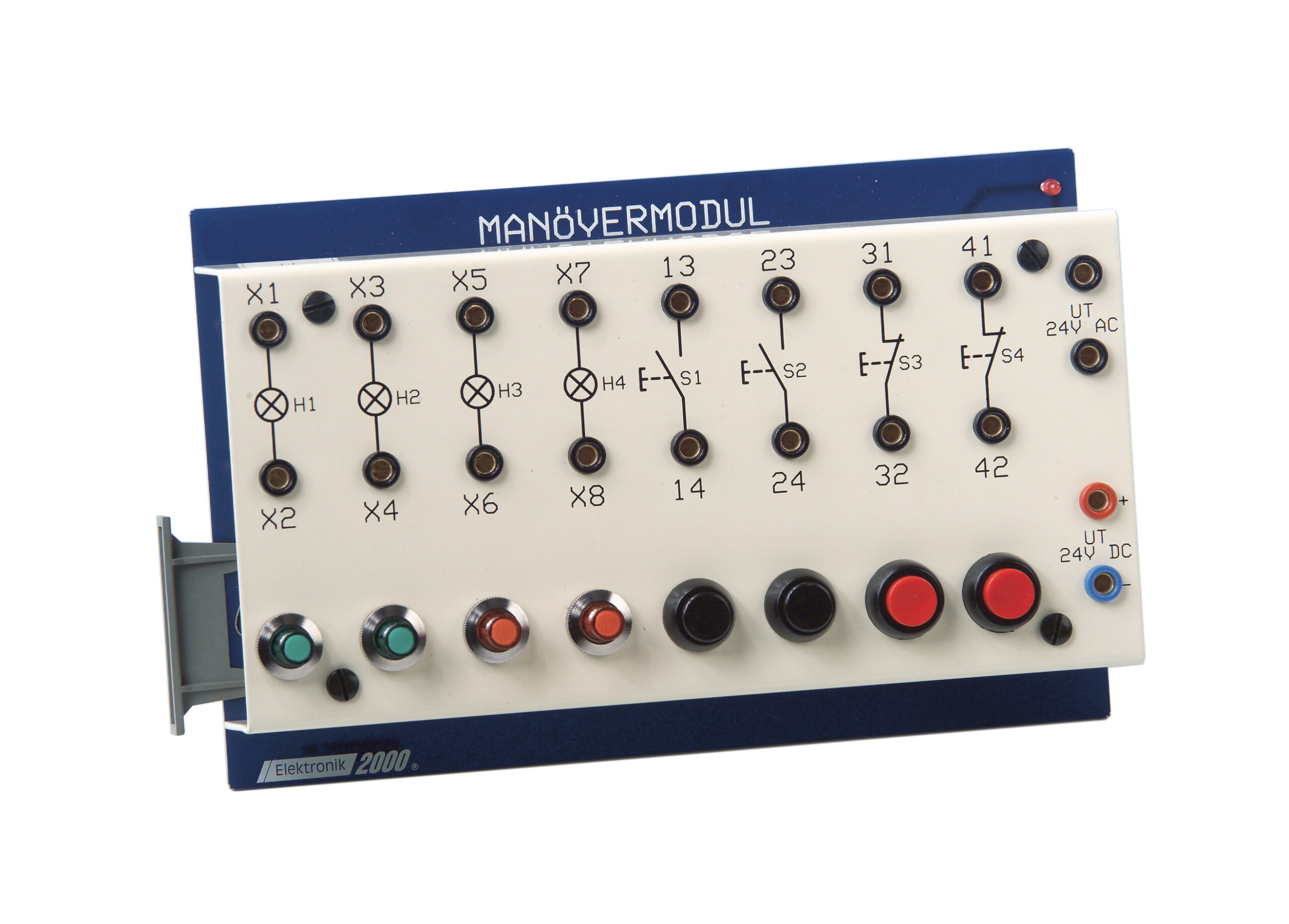

The AC-motor is started and stopped by push button controlled electrical switches, located in the Control Module. They are specified with indication as normally closed (NC) or normally open (NO) contacts and there are two of each. In the Control Module you also find a number of indicating lamps. Two of them are red and two of them are green.? To control the motor 24 V AC is used which is supplied from the Base Unit 2000, where the Control Module is to be connected. The Base Unit may be loaded up to 50 VA. The Control Module holds also 24 V DC for other experiments.

General data

The Control Module consists of:

  • 2 push buttons, NC
  • 2 lamps
  • 2 push buttons, NO
  • Output 24 V DC and 24 V AC

The Control Module has to be connected to the Base Unit 2000.

Dimensions:

240 x 140 x 55 mm

Weight:

0.7 kg
