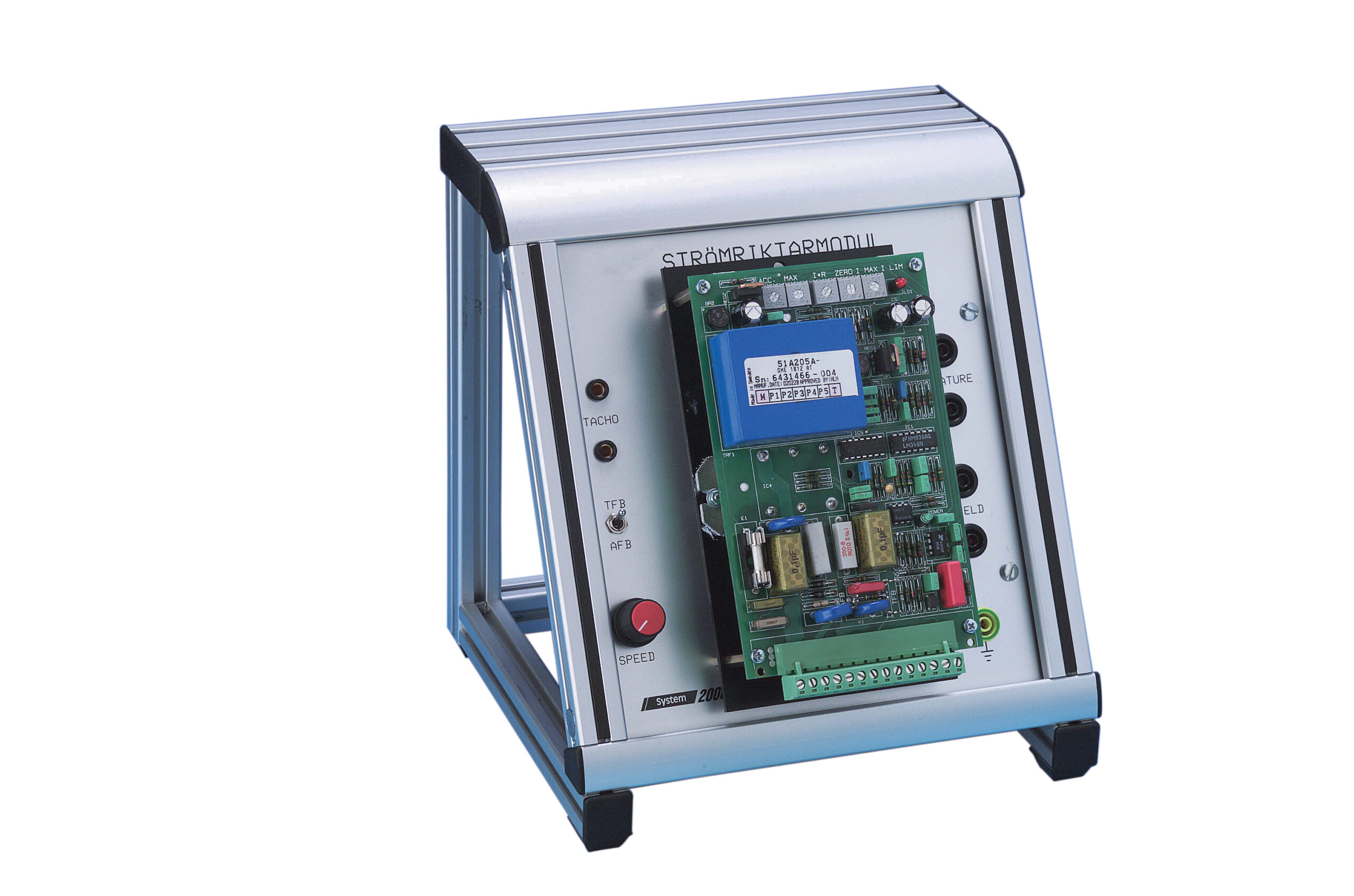

DC-Drive

Artikelnr: ELK102248 Kategori: Taggar: ,

Beskrivning

The DC-Drive is used to run the DC motor. Here the parameters are set, as rpm, current limits, acceleration, ramps and others.

General data

Current max:

12 A

Armature voltage:

0-180 V DC.

Field voltage:

200 V DC.

Field current max:

1 A

Acceleration period:

0.2-5 s.

Feedback with armature current or tacho.



Supply voltage:

230 V 1-ph, 50 – 60 Hz.

Dimensions:

230 x 250 x 245 mm

Weight:

2.6 kg
