Beskrivning

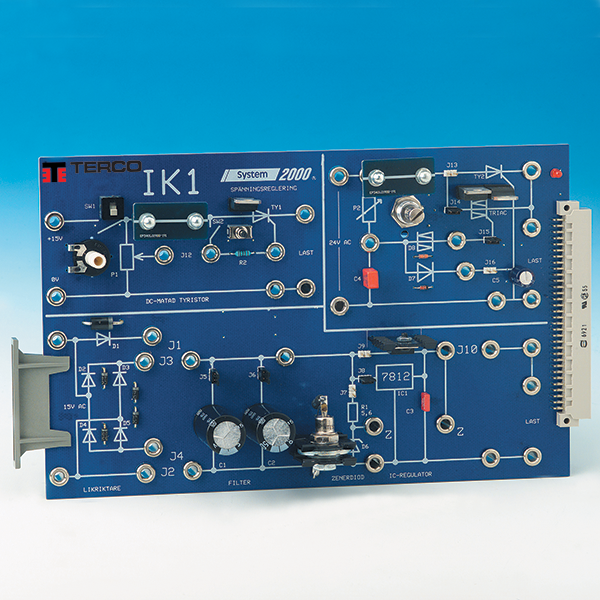

ELE102221 Lab Card IK1 Power Regulator cover topics of the following exercises and experiments:
- Rectification, half bridge and full bridge
- Ripple Smoothing
- Voltage Stabilising with Zener Diode and IC
- Thyristor parameters
- Triac and Diac regulation with a lamp
Technical data: | |
Panel sockets | 4 mm |
Size: | 220 x 140 mm |
Weight: | 0.2 kg |
Powered from | Base Unit 2000 via connector. |
