Beskrivning

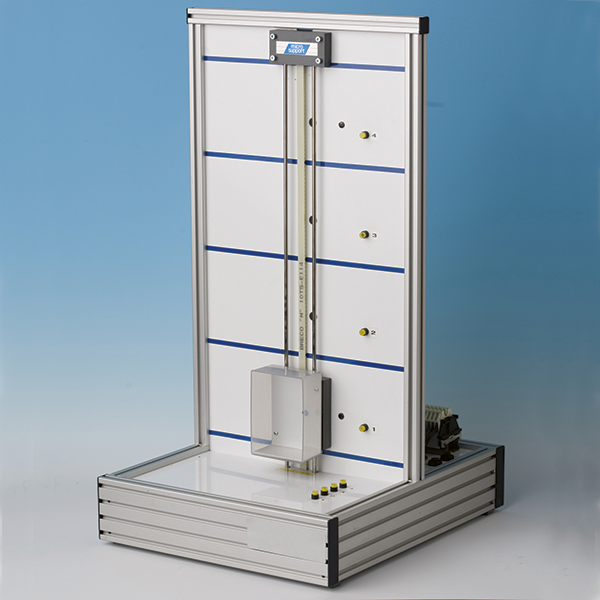

This Elevator Model is intended as a control object for programming exercises with a control system, PLC or computer. The process consists of a lift cage to be moved between four levels. The pushbuttons at each level and inside the lift cage have LEDs for indication.
General Data
| Power supply: | 24V DC |
| Inputs: | 10 |
| Outputs: | 12 |
| LEDs: | 8 (acknowledgement) |
| Position indicators: | 4 |
| Lift up | |
| Lift down | |
| Logic level: 24 V DC | |
| Connection: Via terminal block or two 37 – pin | |
| D – connectors for quick connection to I/O Module | |
| Dimensions: | 340 x 405 x 650 mm |
| Weight: | 9 Kg |
