Beskrivning

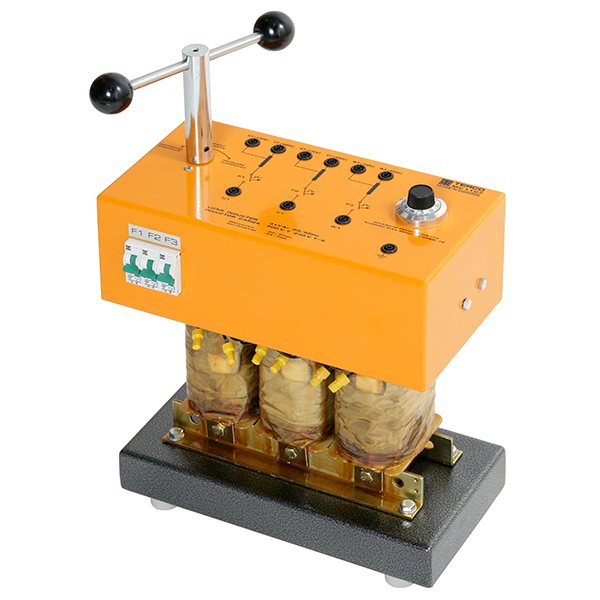

The reactor is continuously variable within the range 0.5-3.0 kVAr. When the reactor is connected to a system with 230 V between lines, the setting range can be increased to 0.15-3.0 kVAr by using Y-connection.
The required reactive power is set by means of a crank. For easier setting, the load reactor has a ten-turn scale with 100 scale divisions for each turn. Each winding is fitted with a fuse.
3-phase 0.5-3.0 kVAr, 400 V Y, 230 V Y, 50-60 Hz
V | Connection | Hz | A |
230 | star / delta | 50 | 0.4-7.8 |
400 | star | 50 | 0.7-4.5 |
230 | star / delta | 60 | 0.3-7.6 |
400 | star | 60 | 0.6-3.7 |
Dimensions | 340 x 170 x 380 mm | ||
Weight | 30 kg |
