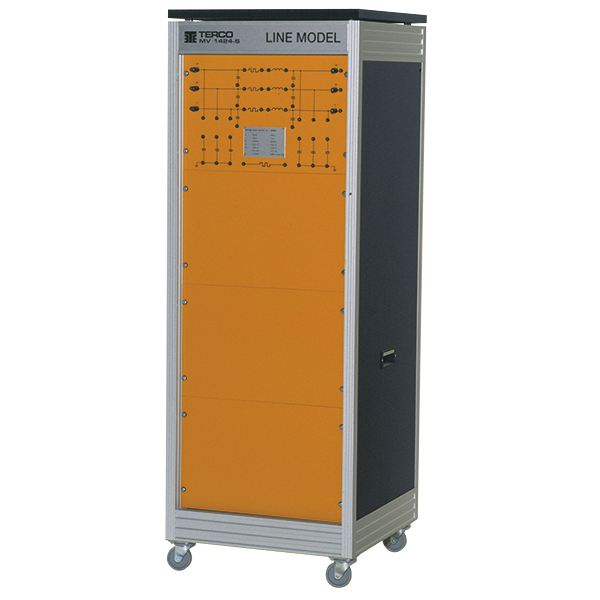

MV1424 Line Model

Artikelnr: MV1424 Kategori: Tagg:

Beskrivning

MV1424 Line Model

Technical Specifications

Real line parameters

?

Nominal length:

40 km

Nominal voltage:

40 kV

Nominal current:

350 A

Positive sequence reactance X+:

15 ohm

Zero sequence reactance X0:

23 ohm

Positive sequence resistance R+:

8.4 ohm

Zero sequence resistance R0:

16.0 ohm

Positive sequence capacitance C+:

400 nF

Zero sequence capitance Co:

265 nF

Line Model specifications

?

Represented length:

40 km

Nominal voltage:

400 V

Maximum voltage:

600 V

Nominal current:

10 A

Maximum current :

32 A (60 sec)



R1 = 4.7 ohm

R0 = 0.8 ohm

X1 = 2?? x 5.45 mH

X0 = 2.62 ohm

C1 = 1.0 ?F

C0 = 0.6 ?F



Dimensions:

600 x 600 x 1720 mm

Weight:

190 kg

Transmission, Transformer & Protection Lab
