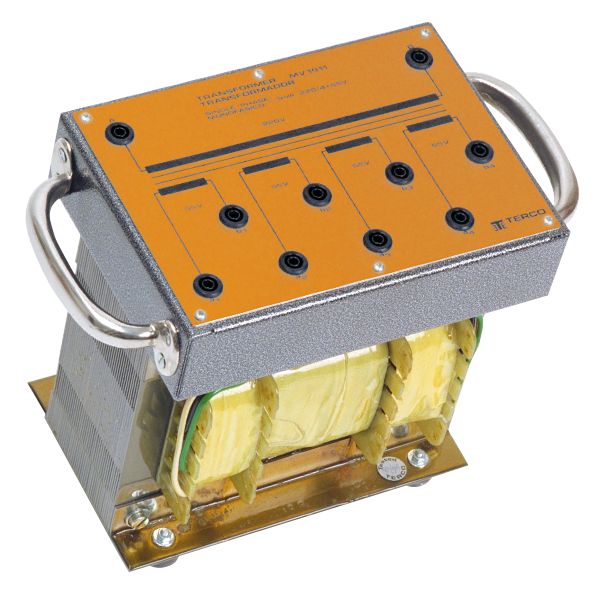

MV1911 Transformer Single-Phase
| Ratings | Single-phase 1 kVA, 50-60 Hz |
| Primary: 230 V ± 5 % | |
| Secondary: 4 x 57.5 V ± 5 % |
The secondary winding is divided into four windings for series or parallel connection.
| No load losses | Po = 25 W |
| Impedance voltage | ek = 8 % |
| Resistance voltage | ek = 3 % |
MV 1911 can be used for determination of operating characteristics, losses and efficiency of a single-phase transformer by means of no load, short-circuit and load tests. The transformer has safety sockets mounted on the front panel with mimic diagrams.
| Dimensions: | 210 x 150 x 210 mm |
| Weight: | 22 kg |
