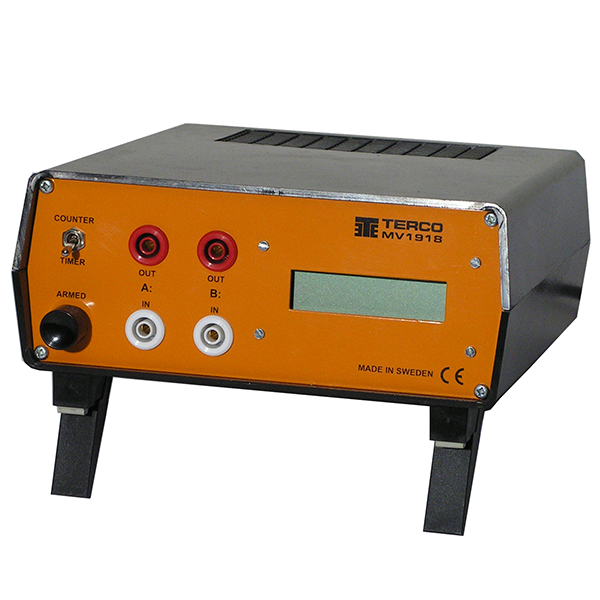

MV1918-1 Digital Timer is suitable for measuring the pick-up and drop-out times of relays and for physical experiments. The timer has two inputs that can be wired either to start or stop timing. Timing is started or stopped by every change at the inputs (make or break). It is also possible to connect the timer to one of the inputs only, in which case the closing of a make contact starts the timer, and the opening of the circuit stops it.
The inputs are protected for over-voltage, AC and DC.
| General Data | |
| Two measuring ranges | Timer 1 msec – 60 sec Counter 1 – 65 000 counts 230 V DC max. |
| Accuracy | 0.1 % of reading 1 digit |
| Resolution | 1 msec |
| Height of digits | 7 mm |
| Mains supply | 220-240 V, 50-60 Hz |
| Dimensions: | 175x200x90 mm |
| Weight: | 1 kg |
