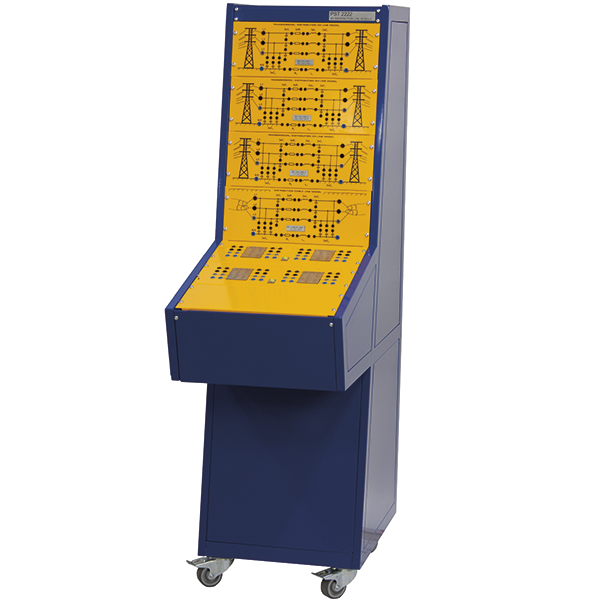

PST2222 Distribution Lines Module

Beskrivning

General

PST2222 Distribution Lines Module has 3 scaled down 3-phase Overhead Lines (OH) transmission lines (2 different) and one underground cable link with possibilities to change and combine impedance elements to constitute other OH High Voltages (HV) levels as well as cable models for distribution.

All models have coils, capacitors and resistors designed to withstand overload and surges for dynamic as well as for static experiments.

All parameters of the transmission models can be changed easily by both internal and external combinations, together with the possibilities of arranging the models in series, parallel or in grid networks.

Each artificial line model consists of a three-phase pi-link and an earth link.

Technical Specifications

Two OH-? link

33 kV

20 MVA

20 km

0.05 p.u.

One OH-? link

11 kV

5 MVA

5 km

0.04 p.u.

One Cable-? link

11 kV

5 MVA

5 km

0.04 p.u.

With our Distribution Modules, we have a unique combination of HV-lines, Medium-Voltage lines, OH-distribution Voltage lines and Distribution Voltage cables which will enable studies of the typical?parameters and characteristics within the four main groups of AC-power transmission and corresponding need of compensation.

Each model can either be studied as a six- or eight pole block or in itself component by component. It is possible to isolate/separate the different R, L, and C characteristics of each line for individual analysis. All line models have the same ratings in the model scale: 400 V, 2A.

All line models also have parallel four pole blocks to provide easy facilities of connection.



Measurements





Cubicle

WxHxD

540x1900x1075 mm

Weight:



132 kg

Power Supply

400V 3-phase, 16A. Each module connects 5 pole (L1, L2, L3, N, Earth) with CEE connection
