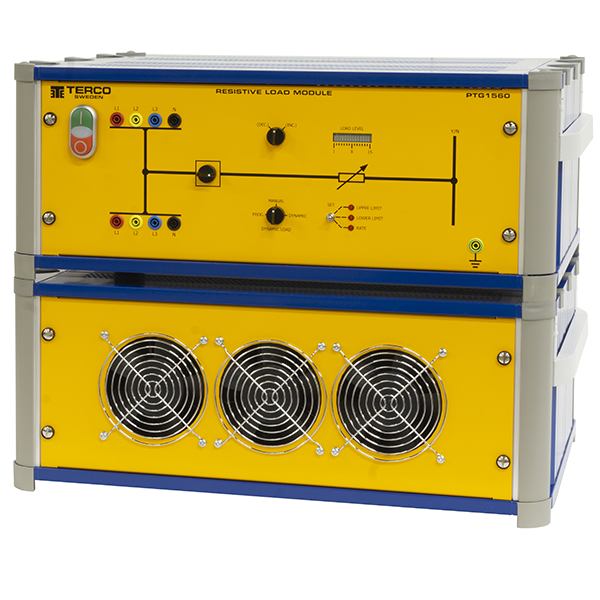

PTG1560 Resistive Load Module

Artikelnr: PTG1560 Kategori: Tagg:

Beskrivning

PTG1560 Resistive Load Module ? the load can be changed in 15 steps with 100W / step at 400V. The unit can be programmed for a typical load curve over 24 hours.

Power Supply:

1-ph 220 – 240 V, 50 – 60 Hz

Input Voltage:

3-phase 400V AC/ 2A with 4 mm safety connectors.

Dimension:

600 x 420 x 420 mm

Weight:

38 kg

PTG1560 consists of 2 units which can be split to optimize the bench top place.

All Load Modules is equipped with Local Area Network communication for monitoring and control via PTG1631 SCADA Module.

Relevant errors can be programmed for troubleshooting exercises via PTG1570 Fault Module
