Rotary Index Table

Artikelnr: ELK102252 Kategori: Taggar: ,

Beskrivning

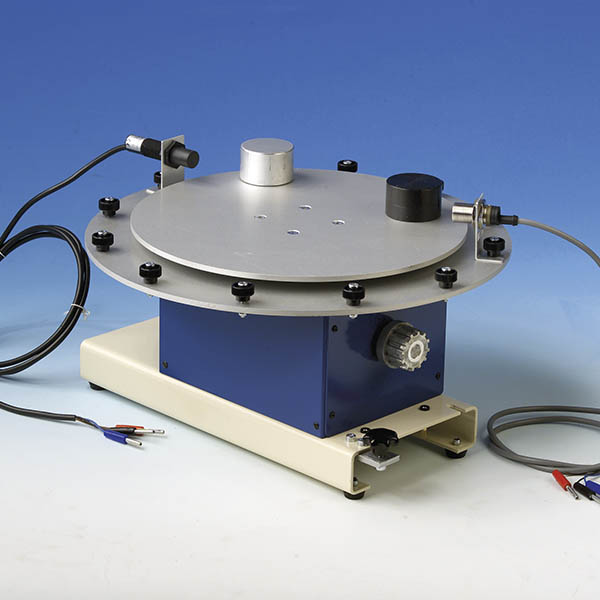

The Rotary index table is to be connected to a motor via a coupling. The rotary index table includes a worm gear where the outgoing vertical shaft drives a fixture plate. The worm gear reduces the speed 30:1.

The rotary index table shall be driven by an electrical motor by a ball bearing suspended shaft. The fixture plate with holders and sensors to recognize different materials.

Suitable to learn about different controls with frequency converters or current rectifiers and PLC.

General data

Dimensions:

400 x 380 x 190 mm

Weight:

7.4 kg
