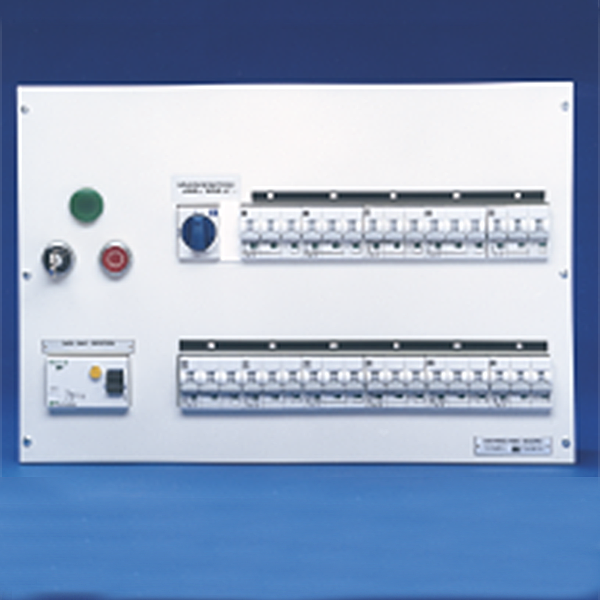

TF1251 Distribution Panel

Artikelnr: TF1251 Kategori: Tagg:

Beskrivning

TF1251 Distribution Panel?is manufactured in varnished sheet metal and used for separate distribution of power to each lab. group (student panel). It contains one main switch, eleven 3-pole 16 A? MCB (miniature circuit? breakers), one ELCB (earth leakage circuit breaker), one indicator lamp and lockable ON-key. The distribution panel breaks the supply voltage when a current > 30 mA flows in the protection lead.

TF 1251 is wired for connection of outgoing groups to each MCB. The incoming wires are to be connected to the main switch.

Dimensions

480 x 330 x 60 mm

Weight

10 kg
