Three Phase Terminal

Artikelnr: ELE102232 Kategori: Tagg:

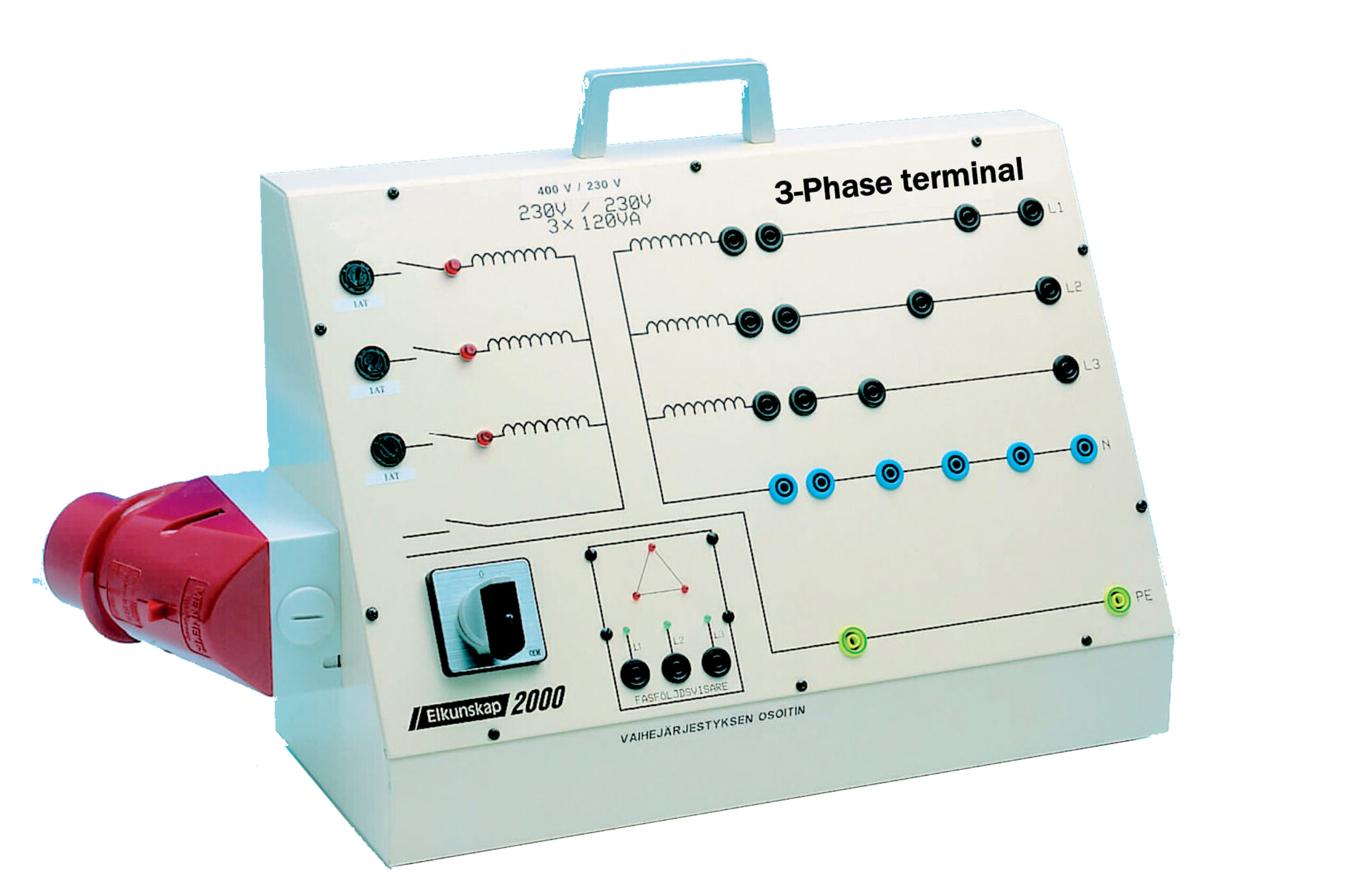

The AC-motor can be connected to a 3-phase net by a 3-phase terminal with a 5-pole 16 A electrical output as to standard CEE17. Inside the terminal panel there is a control device for the 3-phases and the neutral line. The different phases are fused and in the terminal box is an insulation transformer (1:1) as well.

The terminal panel is equipped for current- and voltage measuring on all phases and includes a phase sequence display where LED indicate the phase sequence. The connection from the 3-phase terminal panel to the AC-motor is done with lab leads, directly or via the Contactor Unit.? Only 4 mm safety lab sockets are used.

General data

Supply voltage:

Prim. 5-pol. 400/230 V 3-ph, 50 – 60 Hz, 2,5A


Sec. 5-pol 400/230 V 3-ph, 50-60 Hz, 2,5 A


510 x 190 x 320 mm


8.3 kg

Three Phase and Motor Control Systems_lr
