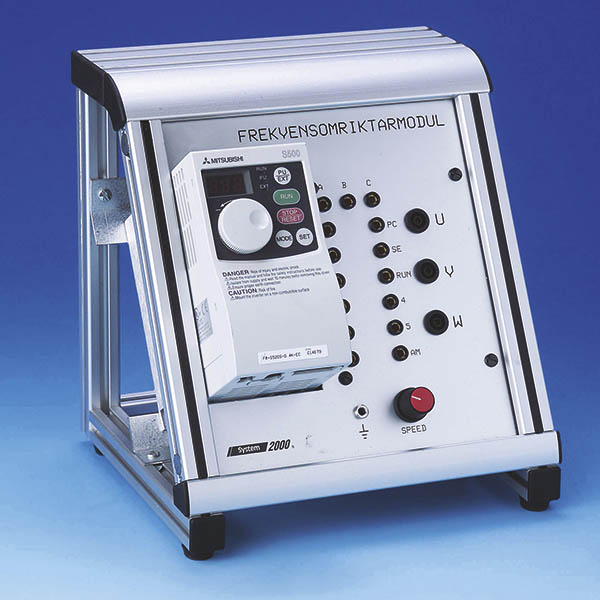

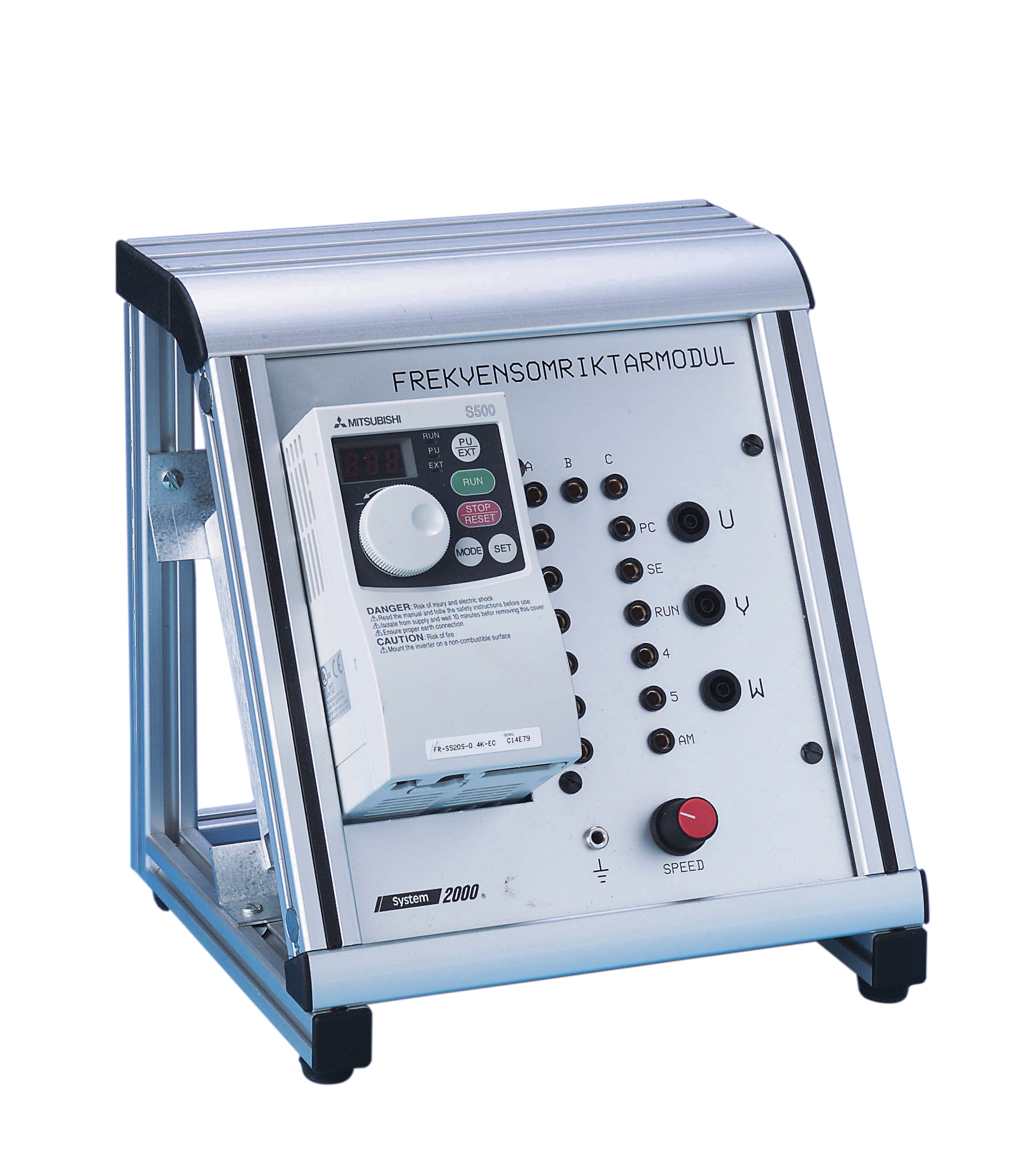

The AC-Drive is suitable to control the speed of an AC motor. It is perfect in many industrial applications e.g. pumps, fans, drilling machines etc. The AC – Drive can be set with 100 different parameters e.g. acceleration & retardation times, current limit, over load, alarm, speed ranges.

It has also a built -in PID regulator. Here we focus the use of soft start and soft stop, rpm control and study the electronic overload protection.

General data

Max motor power:

0.4 kW

Input voltage:

230 V 1-ph, 50 – 60 Hz

Output voltage:

0-230 V 3-ph


2.5 A

Output frequency:

0.5-120 Hz


230 x 250 x 245 mm


2.6 kg
