DC-Motor

Artikelnr: ELK102250 Kategori:

Beskrivning

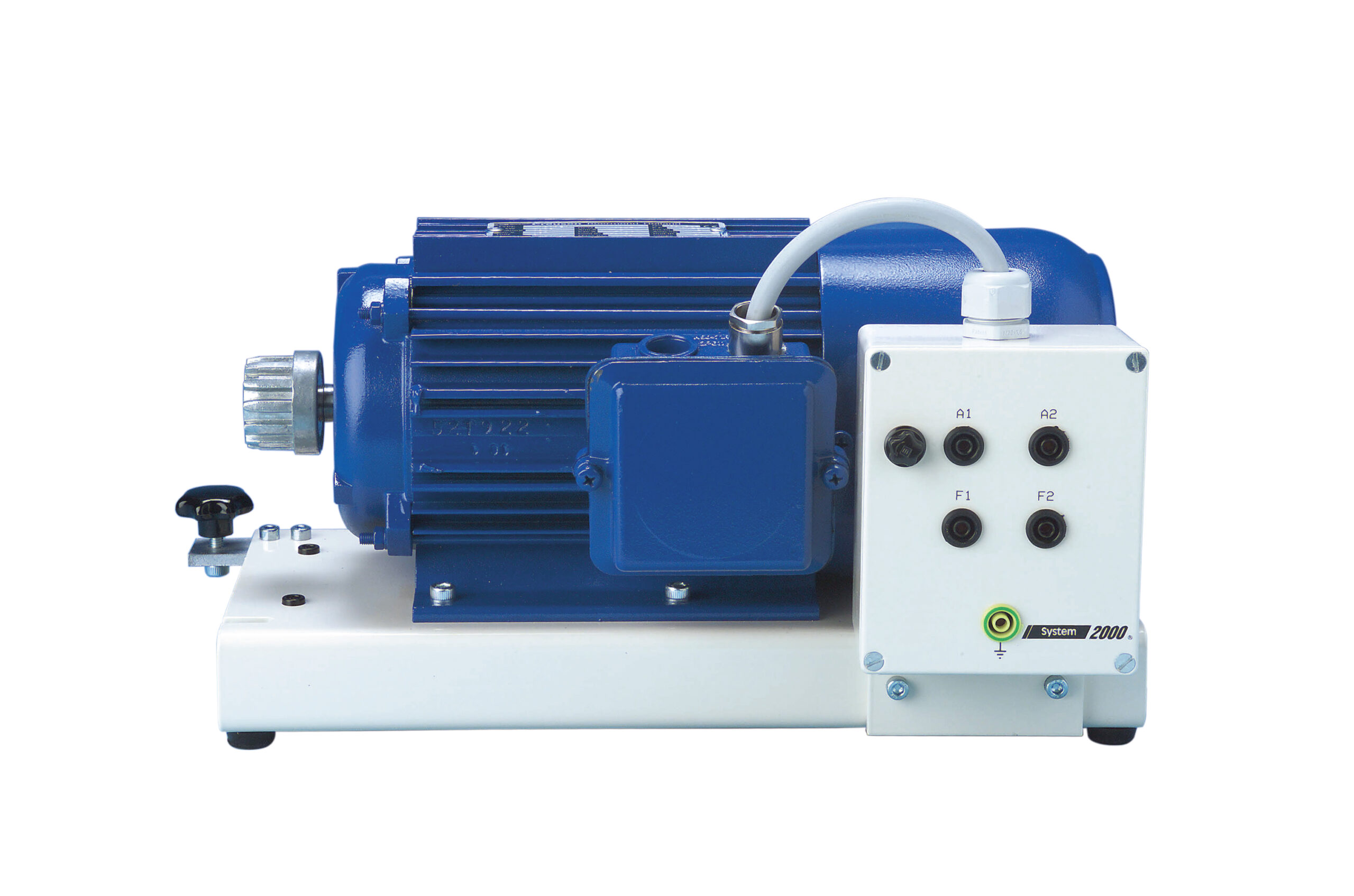

The motor is mounted on a steel base to be connected to a magnetic powder brake or to other electrical machines with a quick shaft coupling. The DC-Motor has open shunt winding to make it possible to connect it as shunt or separate excitated DC – Motor.

General data

Shunt wound

DC-motor.

Armature voltage:

160 V

Field voltage:

190 V

Armature current:

2.1 A

Power:

0.25 kW

Speed:

1500 rpm.

Dimensions:

380 x 220 x 250 mm

Weight:

13 kg
