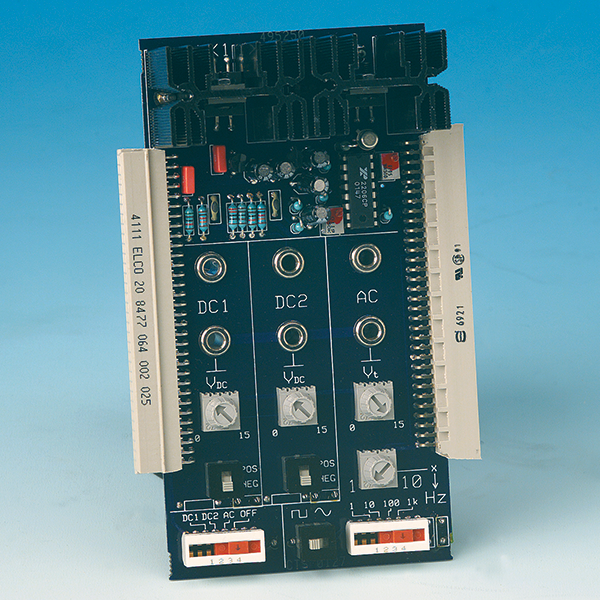

ELE102001 Lab Card HK1 Help Function Card serves as additional power supply and function generator.
The HK1 slots into the Base Unit 2000, and the Lab Card IK1 to 6 slots into HK1.
| Technical data: | |
| DC Output 1: | 0 – +15 V, (5 V/1.6 A 10V/1.0 A 15 V/0,1 A) |
| DC Output 2: | 0 – -15 V, (5 V/1.6 A 10V/1.0 A 15 V/0,1 A) |
| Sinus wave: | 1Hz to 10 kHz in 4 steps |
| Square wave: | 1Hz to 10 kHz in 4 steps |
| Amplitude: | 0-15 V / 8 Watt |
| Size: | 140 x 75 mm |
| Weight: | 0.2 kg |
