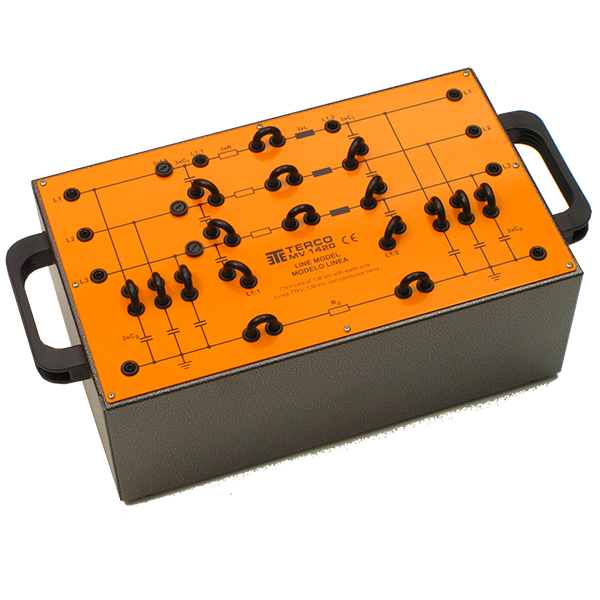

MV1420 Line Model corresponds to a power transmission line of a length 136 km, voltage 77 kV, amperage 100 A, power rating 13 MW.
| Technical data | |
| Voltage | 220-240 V, three-phase (corresponding to 77 kV) |
| Amperage | 5 A (corresponding to 100 A) |
| Line resistance | 1.5 ohms |
| Line reactance | 3.15 ohms |
Line capacitance divided into capacitance to earth (4° F) and mutual line capacitance between phases (8° F).
| Earth impedance | 0.8 ohm |
| Fuses | 5 A |
| Dimensions: | 410 x 245 x 160 mm |
| Weight: | 10 kg |
The following studies can be made:
- Measurements of characteristic data, resistance, reactance and capacitance of a line.
- As transmission line: Measurement of voltage drop and losses for different loads.
- For two-phase and especially three-phase short circuit measurements with two three phase transformers, one at each end.
- For single-phase and two-phase earth fault measurements.
The network model can be used to complete a series of experiments with transmission lines. Those listed and described in detail in the instruction manual include:
Characteristic data of the line
- Voltage drop on the lines
- Short circuit tests
- Earth fault
