Beskrivning

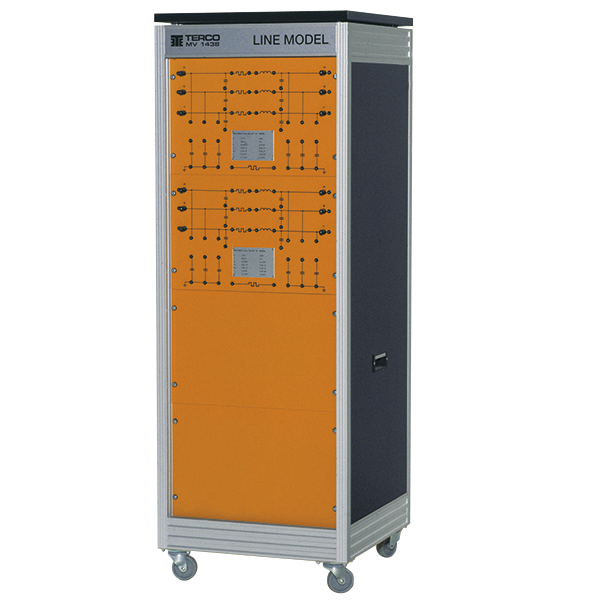

MV1438 Cable Model consists of two cable sections with a nose section cable area of 150 square mm and 240 square mm respectively.
| Technical data | ||
| Real line parameters | Line Model Specifications | |
| PEX Cable 150 square mm Al | (one π-link) | |
| Length | 5 km | corr. 5 km |
| Nominal voltage | 11 kV | 400 V |
| Nominal current | 260 A | 6 A |
| Transmission ability | 5.0 MVA | 2.4 kVA |
| Positive sequence capitance C+ | 0.45 µF | 0.28 µF |
| Zero sequence capitance C0 | 0.45 µF | 0.28 µF |
| Inductance | 1.8 mH | 2.84 mH |
| Resistance | 1.1 ohm | 1.8 ohm |
| Zero sequence reactance X0 (approx.) | 2.3 ohm | 3.7 ohm |
| Real line parameters | Line Model Specifications | |
| PEX Cable 240 square mm Al | (one π-link) | |
| Length | 5 km | corr. 5 km |
| Nominal voltage | 11 kV | 400 V |
| Nominal current | 340 A | 6 A |
| Transmission ability | 6.5 MVA | 2.4 kVA |
| Positive sequence capitance C+ | 0.55 µF | 0.26 µF |
| Zero sequence capitance C0 | 0.55 µF | 0.26 µF |
| Inductance | 1.6 mH | 3.30 mH |
| Resistance | 0.7 ohm | 1.5 ohm |
| Zero sequence reactance X0 (approx.) | 2.1 ohm | 4.3 ohm |
| Dimensions: | 600 x 600 x 1720mm | |
| Weight: | 190 kg |
