Beskrivning

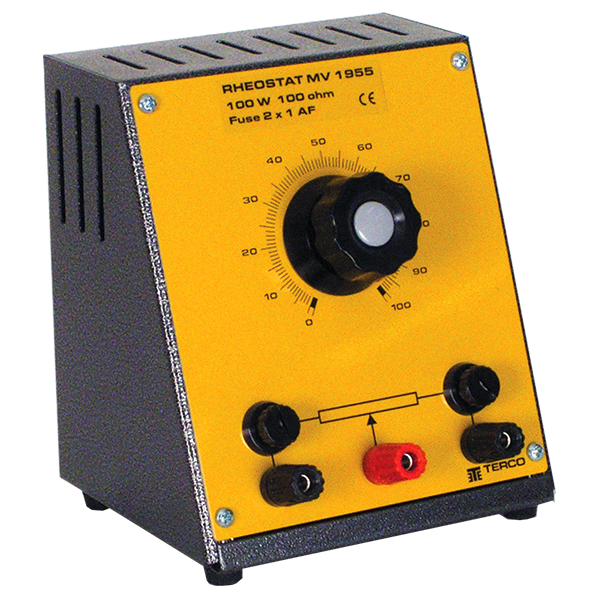

MV1955 Rheostat is enclosed in a robust metal case. The back, bottom and top of the case are perforated to provide optimum cooling.
Two glass fuses protect the resistor against excessive current and incorrect connection. A scale having 100 divisions indicates the resistance setting.
Technical Data: | |
Power | 100W |
Resistance | 100 Ohms |
Max Current | 1 A |
Dimension: | 140 x 130 x 145 mm |
Weight: | 1 kg |
