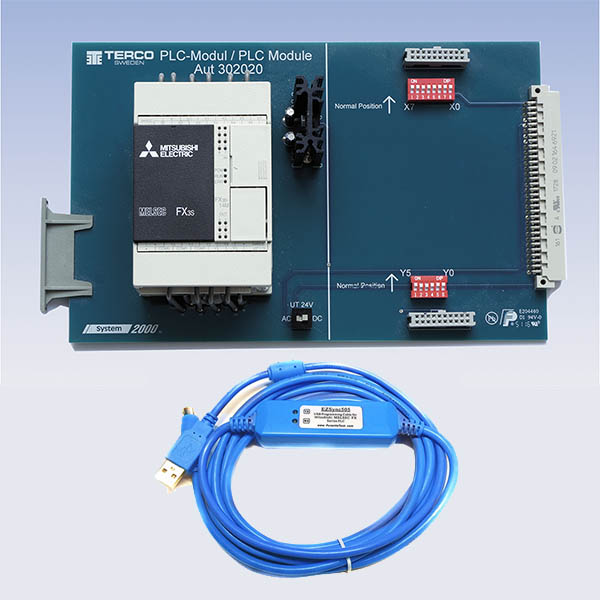

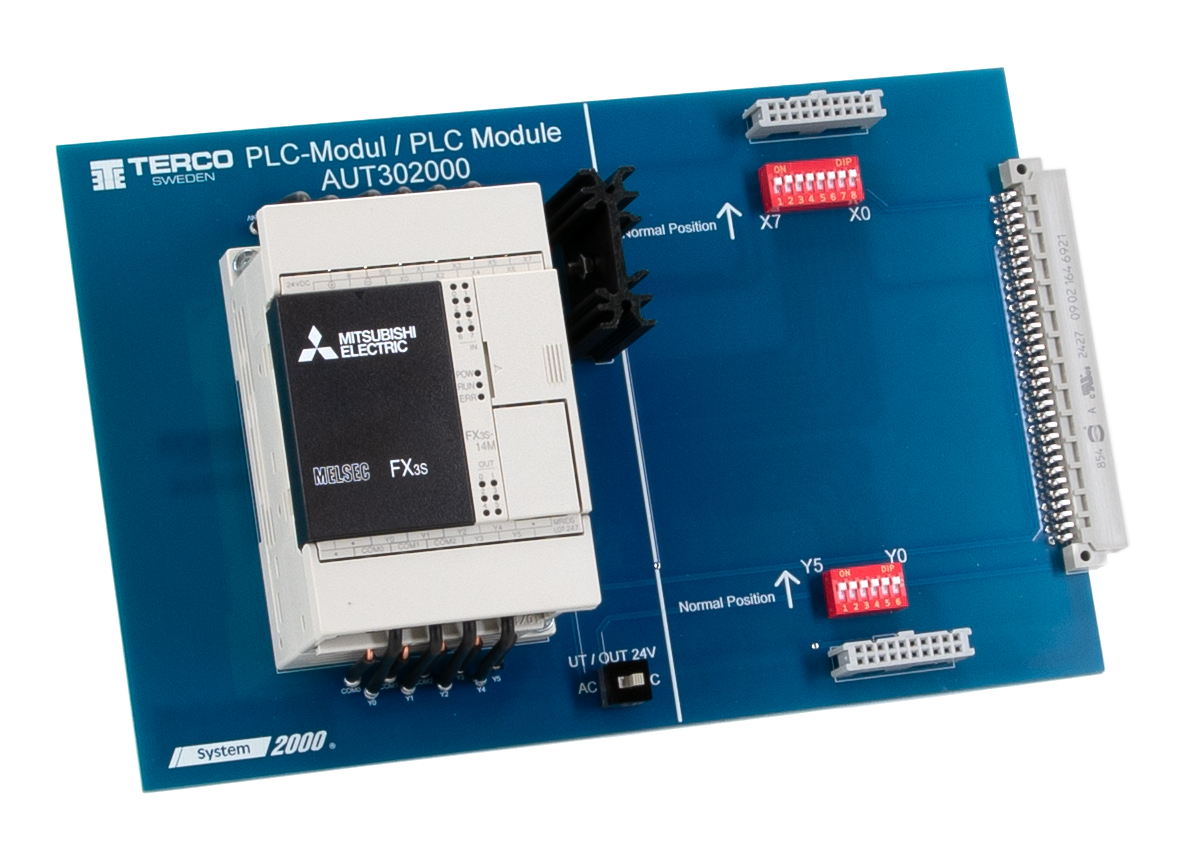

PLC Module


The PLC – Module has to be connected to the Base Unit 2000. To program a PLC a PC is connected to a programming port via a cable.

Alternatively, a PC software may be used for programming.

The PLC-module contains a PLC-system with sockets to connect any chosen module card. For the sockets there are?several switches to simulate faults at the different in- and outputs.

General data

Mitsubishi Melsec FX3s DS PLC (24 V)

8 inputs and 6 outputs

Input and output of the PLC is connected to a 20 pin socket


240 x 140 x 55 mm


0.5 kg
