Beskrivning

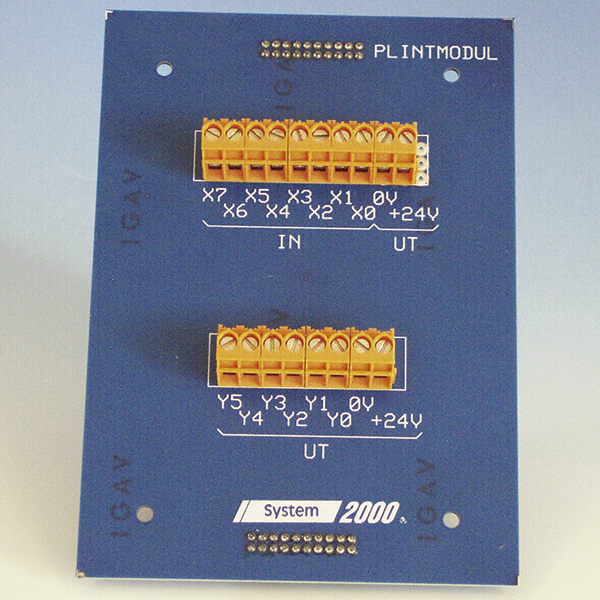

The Terminal Block Module is to be connected to the PLC-Module. The PLC-Module together with the the Terminal Block Module will be used for connections to the Ball Selection Module. The connections will be made with one wire to each output and input.
In this case there will be 8 inputs and 6 outputs for control of the valves (for the cylinders), and sensors on the Ball Selection Module.
General Data:
| Connection between PLC and Lab Equipment | |
| Dimension: | 100 x 140 x 40 mm |
| Weight: | 0.1 kg |
